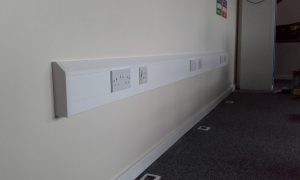

This example is from a classroom, where I have added power and data points along a wall to allow for computers to be used (desks will be placed along the wall)

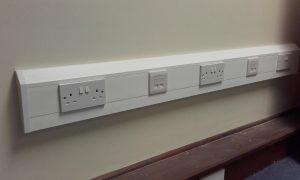

A similar set of trunking for an office, with sockets and data points for laptops and a printer

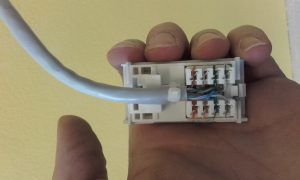

A view inside a data point, showing the connections

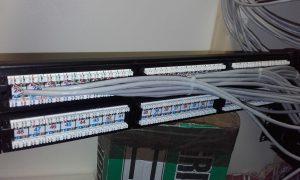

And finally the other end of the data cables – these are the connections inside the patch panel which links all the various data points into the network. Please excuse the green box – it is my ‘bits box’ for putting the offcuts of cable in
This picture was taken part way through the process, with only 24 of the 30 data cables added and before the final tidying up & secring of the cables
